SoftRF WebApp Configurator

How to use the web-based configurator to manage your SoftRF device.

Overview

The SoftRF WebApp Configurator is web based interface to access device settings via Bluetooth. It allows you to:

  • View device status and GNSS information
  • View battery level
  • View current protocol setting
  • Backup and restore settings
Configurator WebApp
Multi device The web app is availbel for other davices using BLE or Serial USB connection, Such as T100E, T-ECHO and T-BEAM.

A hosted version of the configurator WebApp is also available at:
https://skysignals.app/mysoftrf/

Accessing the WebApp

iPhone users Please use Bluefy app to connect via BLE, give nessessary permission tp the app to access Bluetooth.
Android users Works nativly with Chrome browser

Connecting to T1000E SoftRF via BLE

  1. Power on your T1000-E device
  2. On your phone/tablet/computer, open https://skysignals.app/mysoftrf/ in Chrome broser

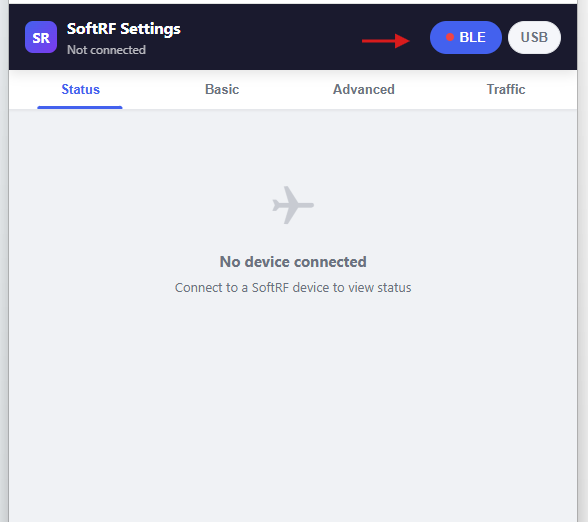

  3. Click BLE button
    4. Configurator WebApp

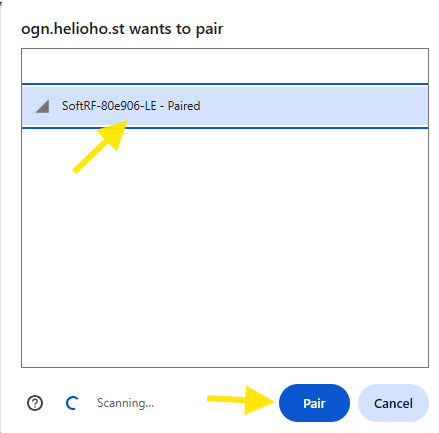

  4. Select SoftRF device in the prompt, "SoftRF-xxxxxx-LE" and click Pair
    5. Configurator WebApp
If the connection fails Make sure your SoftRF device is not connected to anything via BLE like a phone app.

Status Page

The home page shows:

  • Aircraft ID — unique hardware identifier
  • Protocol — transmitted Iprotocol type
  • Alt protocol — Second protocol, if chosen
  • Radio info — protocol, band, packets sent/received, max RSSI
  • Battery voltage — current charge level
  • Uptime
  • Device Controls — Reboot, Shutdown, Reload Settings

Action buttons on the status page:

Basic Settings Page

The basic settings page (since MB153) shows a shorter, cleaner form with the most commonly needed settings:

  • Aircraft ID and ID type
  • Protocol, Region, Aircraft type
  • Alarm trigger method
  • Volume (buzzer)
  • Bluetooth mode
  • NMEA output destinations and sentence types
  • Flight logging options
  • Stealth and No-track flags

After changing settings, scroll to the bottom and click "Save and Reboot". Reconnect to BLE afterward and verify your settings took effect.

Backup Note Clicking "Save and Reboot" automatically backs up the previous settings file. You can revert by clicking "Restore/Swap" on the status page.

Advanced Settings Page

The advanced settings page shows all settings with their raw numeric codes and comments explaining values. You can enter codes directly. See the Under the Hood page for code reference.

Settings Backup and Restore

  • Download — Save settings.txt to your computer
  • Upload — Upload an edited settings.txt (takes effect after reboot)
  • Backup — Copy current settings to settingb.txt internally
  • Restore/Swap — Swap settings.txt with settingb.txt and reboot

Troubleshooting

Settings not fully loaded

  • Refresh the app, re-connect
  • Press Load settings button, on the Status tab
